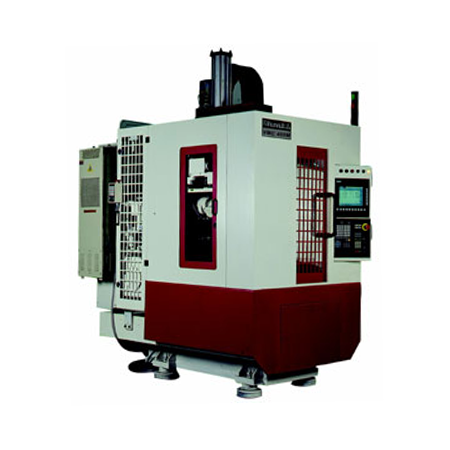

Vertical Machining Center VMC 400M

Salient Features :
» Machine structure designed for optimum performance from static, dynamic and thermal aspects.
» 12-Tools armless tool changer
» Z-Axis on the spindle and X, Y axes on the table
» Dynamically balanced cartridge type spindle unit.
» Direct coupled ballscrews with feed motors
» Absolute encoders for all axes
» Space saving and single lift type design.
» Rigid tapping
» High pressure coolant system
» TPM Friendly machine
» TPM Friendly machine
» Head counter balance
Specifications :
Table size mm 650x400 (standard machine) 500x350 (with pallet changer)
Traverses X, Y & Z axes mm 420 x 400 x 420
Rapid rate m/min 20 (standard), 32/48 (optional)
Positioning accuracy mm ± 0.005
Repeatability mm ± 0.003
Spindle taper BT-40/ISO 40
Spindle speed rpm 40-4000 / 60-6000
Spindle power kW 3.7/5.5, 5.5/7.5 (optional)
ATC Capacity 12
Max. tool weight kg 6
Max. tool dia. mm 80, 125 (alternate pocket empty)
Chip-to-chip time sec 7
Pallet changer (optional) Side mounted twin pallet changer
Pallet change time sec 15
CNC System . Fanuc/Siemens
Overall Dimension (WxLxH) mm 1500x2715x2800 (standard machine) 2200x2715x2865 (with pallet changer)
