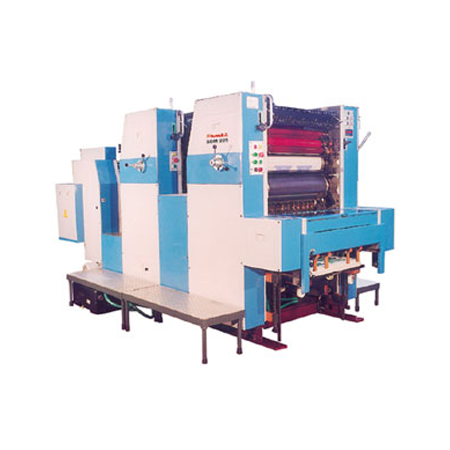

Two Colour Sheetfed Offset Printing Machine SOM 225/225N

Salient Features :
» PLC based Photocell for ‘no sheet’,’cross sheet’ and ‘overshoot’ detection
» Centralised automatic lubrication pump with timer and lubrication reminder alarm
» Lateral and circumferential register adjustments for plate cylinders while the press is running
» Highly reliable pressure vacuum pump
» Motorised feeder pile hoist with pre-piling facility
» Positive and smooth sheet infeed through eccentric swing gripper drive
» Crawl speed for faster make ready
» On-line numbering attachment for both MICR and conventional is available at option



Major Specifications :
SOM 225 / 225 N
mm Inches
Maximum Sheet Size 460 x 640 18 3/32 x 25 3/16
Minimum Sheet Size 210 x 250 8 1/4 x 9 27/32
Maximum Print Area 445 x 635 17 1/2 x 25
Plate size 525 x 640 20 21/32 x 25 3/16
Stock handled 0.05 to 0.6 0.0019 to 0.0236
Total power 7.1 kW 9.4 HP
Machine dimension (LxBxH) 3550 x 2010 x 1753 140 x 79 x 69
*Speed range iph (approx) 2500-9000
