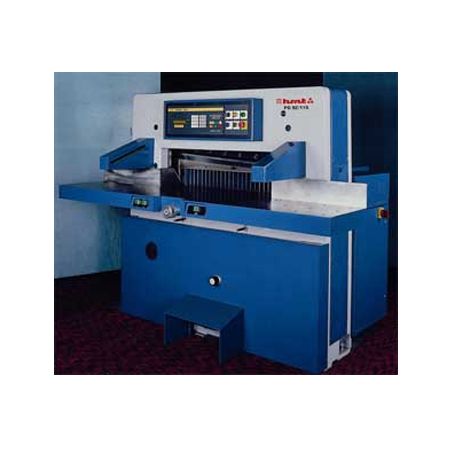

Programmable Guillotines PG 115

Salient Features :

»	One of the fastest Guillotines in the world with a mechanical cutting speed of 47 cuts per minute
»	The only Guillotine to use a pendulum action on the knife carriage bar which guarantees minimal absorption of energy by working parts resulting in reduced wear and easy accessibility for maintenance of the knife carriage and related functions
»	The hydraulic unit is dedicated to maintaining clamp height eliminating the need for counteracting springs
»	CNC controlled closed loop mechanism for accurate positioning of back-gauge eliminating the need of the electromagnetic brake mounted on the ball screw axis
»	The front face of the clamp has a protective insert to prevent the blade grazing or interfering with clamp face
»	Back-gauge position accuracy to + 0.04 mm
»	99 Program channels. Program execution possible either in semi-automatic or fully automatic modes
»	Stainless steel cladding on table for surface protection

Major Specifications :
	PG 115
	mm	Inches
Cutting width	1150	45 3/10
Clamp opening	165	6 5/10
Minimum cut without false clamp	22	0.860
Speed of mechanical cut/minute	47	47
Hydraulic pressure	150-4500 kgs	330-9900 lbs
Space occupied	2350 x 2610	92 x 102
Total power	6.7 kW	9 HP
