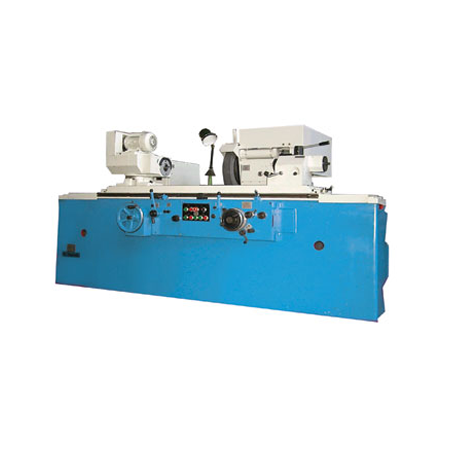

Precision Cylindrical Grinder ANUBHAV 130 / APURVA 175

Proven Grinder for its high rigidity, accuracy & reliability. Now with PLC control, upgraded features and various other options.
Salient Features :
» Single piece robust construction with long guided sleeve for better rigidity of tailstock.
» Bed made of high tensile strength cast iron, heavily ribbed for better vibration damping and shock absorption.
» Precision, widely placed V & flat guideways with turcite for table and infeed slide.
» Turcite lined table guideways for APURVA 175.
» Grinding wheel head spindle runs in a high precision hydrodynamic bearing.
» Higher powered wheel head for production model for high rate of stock removal.
» Spindle is nitrided and super finished for reliability and life.
» Automatic infeed at table reversal for traverse grinding operation.
» Auto plunge grinding cycle consisting of rapid approach, coarse feed, fine feed, spark out and rapid retraction.
» Independent drive for internal grinding attachment.
» Single push button control cycle.
» PLC control for higher reliability.
» MPCB’s & MCB’s in place of conventional fuses.
  Special Executions :
» Special wheelhead with Tilting pad hydodynamic bearings suitable for max. wheel width 100mm.
» Tailstock with micro taper correction.
» Machine with PLC/CNC control (Fanuc/Siemens).
» Angular head grinding machines.
» Needle (syringe) sharpening machine.
» Cassette head grinding with wheel width 270 mm.
» Shoe centreless grinding for bearing races.
» Textile rubber cot grinding.
» Wheel mounted profile dresser / radii dresser.
» Dual speed for table.
» Cone point and radius grinding for textile spindle blade.
» Dynamic wheel balancing (manual or automatic).
» Table/wheel head/bed mounted inprocess gauging.
Specifications :
ANUBHAV 130 APURVA 175
Centre height - Std. / (Opt.) mm 130 / (150/175) 175 / (225)
Grinding length mm 300/550/800/1000 800
Admit between centre mm 550/800/1050/1250 1100
Max. job weight with steady kg 75/100/150 180
Table speed m/min 0.05-6.0 0.05-5.0
Grinding wheel size (ODxW)
P
U
mm
mm
400x40 (50 opt.)
300x40 (50 opt.)
500x60 (70 opt.)
450x60 (70 opt.)
Peripheral / cutting speed - Std./Opt. m/sec 30 / 45 30 / 45
Total Power kW 7.6 7.6
