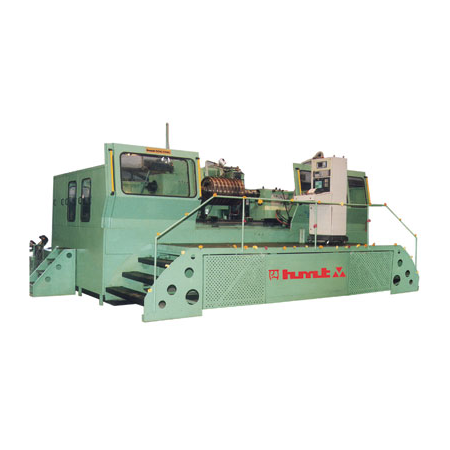

heavy-duty-cnc-universal-cylindrical-grinding-machine-g60-cnc

Salient Features :
» 3-Axes CNC Heavy Duty Grinder ideally suited for carrying out external grinding, shoulder grinding and internal grinding operations.
» The unique feature of this grinding machine is traversing the wheel head mounted on rotary table along the length of component instead of conventional method of moving table.
» Hydrodynamic bearings for wheel spindle.
» Infinitely variable AC servomotor for work spindle.
» Belt driven spindle for internal grinding (optional).
» Tailstock sleeve on preloaded antifriction guide.
» Tailstock mounted dresser for dressing diameter and shoulder.
» Hardened and ground guideways for X-axis with linear re-circulation roller bearings.
» Guideway protection through telescopic type covers.
» Centralized lubrication system for guideways and ball nuts.
» Continuous re-circulating lubrication system for wheel spindle.
» Two circuit refrigeration type of cooler.
» Rotary encoder feed back for X, Z, and B axes.
» Ideally suited for marine, aerospace and power transmission components.
Specifications :
Center height mm 600
Distance between centers mm 3100
Swing over table mm 1150
Grinding dia. - Min / Max. (ext.) mm 80 / 1140
Maximum weight of job
Between centers
Chuck job including chuck weight
kgf
kgf
1500
400
Control System Fanuc/Siemens
