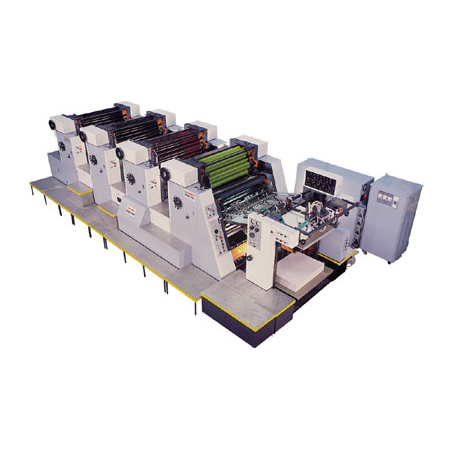

Four Colour Sheedfed Offset Printing Machine SOM 436

Salient Features :
» Precision ground hard chrome plated cylinder
» 18 Roller inking system with 3 forme rollers
» Double Blankets for excellent dot reproduction
» Eccentric Swing Gripper for smooth sheet in feed
» Programmable logic control for high reliability of the electronic controls
» Motorised dampening fountain roller with stepless speed control and provision for surge control
» Lateral & circumferential register adjustment for the plate cylinder while the machine is running
» Triple size Transfer Drum for better accessibility
» High pile delivery and IR drying at option
» On-line numbering attachment is available at option
» Pneumatic controls
» SOM 425C with continuous film Alcohol dampening system with advantages like
» Instantaneous Ink-water balance
» Less ink consumption and better gloss
» Less moisture – reduction in paper distortion / expansion, thus improving multicolour registration accuracy
» Reduction in make ready time
» Sheet decurler and air brush for image fit as optional



Specifications :
SOM 436
mm Inches
Maximum Sheet Size 655 x 925 25 13/16 x 36 /16
Minimum Sheet Size 300 x 420 11 13/16 x 16 /16
Maximum Print Area 645 x 910 25 3/8 x 35 13/16
Plate size 770 x 925 30 5/16 x 36 7/64
Stock handled 0.05 to 0.7 0.002 to 0.027
Total power 24.72 kW 33 HP
Machine dimension (LxBxH) 8860 x 3050 x 1950 349 x 120 x 77
*Speed range iph (approx) 2500-7500
