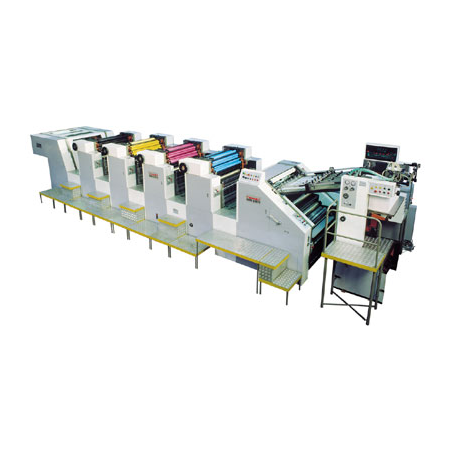

Five Colour Sheetfed Offset Printing Machine with Perfector SOM 536 V

Salient Features :
» Prints 1 + 4 colours retroverso
» Ergonomically designed for ease of operation
» Diagnostic fault display at feeder
» Reliable suction head handles effectively a wide variety of paper stocks from 0.05mm to board of 0.7mm thickness
» Good blending of ink and optimum transfer to the plate for high quality results
» Quick ink/water balance and thin film dampening results in good print quality
» Pin register system and on-line register controls for quick settings
» Anti-marking sheets on transfer cylinders and delivery drums
» High pile delivery with motorized pile hoist and anti-set off powder spray
Major Specifications :
mm inches
Maximum Sheet size 655 x 925 25 13/16x 36 7/16
Minimum Sheet size 300 x 420 11 13/16x 16 9/16
Maximum Print Area 645 x 910 25 3/8x 35 13/16
Plate size 770 x 925 30 5/16 x 36 27/64
Stock handled 0.05 to 0.7 0.002 to 0.027
Total power 25.5 kW 34.5 HP
Machine dimension (LxBxH) 10450 x 3050 x 950 412 x 120 x 77
* Speed range iph (approx) 2500-7500
