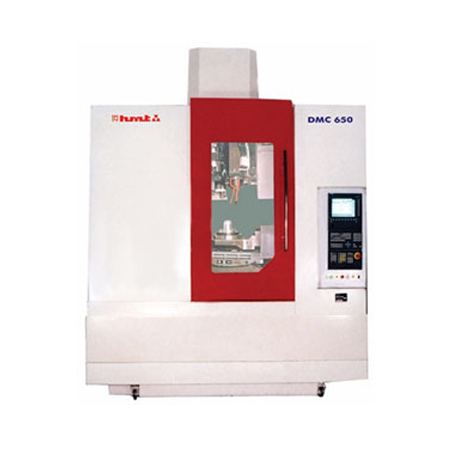

Die & Mould Machining Center DMC 650

Salient Features :
» High speed, high power integral spindle
» Cartridge type spindle arrangement mounted on the ram for easy dismantling during servicing
» Automatic spindle temperature cooler
» LM guides for X & Y axes
» Ram structure for Z-axis with enveloping guideway design with large contact area to ensure good cutting performance throughout the stroke
» Optional rotary table with tilting axis for a full-fledged five-axes machining
» Total clamping through disc springs and declamping through pneumatic
» Cam operated armless 24 tools ATC
» Minimal hydraulics
» Counter balancer to ensure zero drop during power failures



Specifications :
Clamping surface mm 850x450
Max. load on table kg 400
Spindle speed range rpm 100-10000 (opt. 15000)
Spindle nose taper BT 40
Travel - X / Y / Z mm 650 / 450 / 450
Feed rate mm/min 1-24000
Rapid rate - X / Y / Z mm/min 30 / 30 / 24
Machining capacity Face milling (Steel 55065 kg/mm2)
Drilling (Steel/Cast Iron)
Tapping (Steel 55-65 kg/mm2)
cc/min
cc/min
224
58
M30
Accuracies (VDI/DGQ 3441)
Positioning
Repeatability
mm
mm
0.008
0.004
CNC System SINUMERIK 840D
Total weight kg 5500
Dimension (lxbxh) mm 3200x3000x3000
Rotary Table Tilting axis (A)
Rotary axis (C )
Speed range
Indexing accuracy
Repeatability
deg
deg
rpm
arc secarc sec
± 900
Continuous
0-10
105
