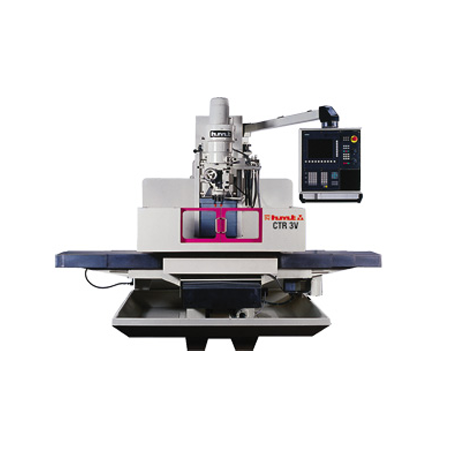

CNC VERTICAL TOOL ROOM MILLING MACHINE CTR 3V/5V

Salient Features :
» Versatile Tool Room Milling Machine with capability for milling,drilling, tapping & boring at any angle.
» The machine is equipped with 3-axes AC servos and variable frequency drive for spindle with 3-axes AC servos and variable frequency drive for spindle with state-of-the art Siemens 802D CNC system. All axes fitted with LM bearings.
» Equipped with 40-3000 rpm 1.5 kW spindle with variable frequency controlled ball bearings for spindle.
» Can ideally be used for tool room applications and in automobile and auto ancillaries, small industry and educational & training centres.



Specifications :
MAIN DATA CTR 3V CTR 5V
Table mm 1000x350 1000x350
Axis Travel - X / Y / X Axis mm 800/350/350 800/350/350
Rapid Feed Rate m/min 10 10
Main Spindle Motor kW 1.5 3
Spindle Speed rpm 40-3500 50-3500
Quill Movement (manual & auto) mm 127 127
Accuracy (as per JIS) X-Axis mm ±0.008 ±0.008
Y & Z-Axis mm ±0.005 ±0.005
Repeatability mm ±0.003 ±0.003
Total connected load KVA 20 20
