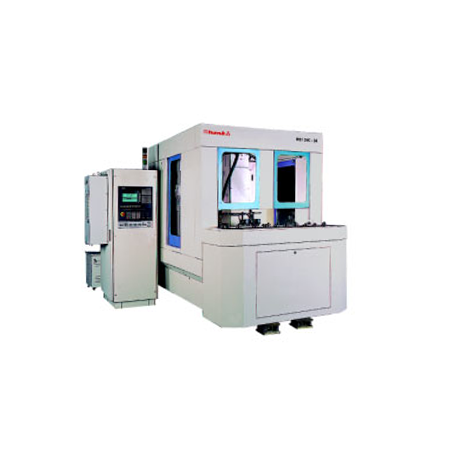

CNC High Speed Gear Shaper WS1 CNC 3A

Salient Features :

»	Infinitely variable spindle speeds through AC spindle drive.
»	Infinitely variable table slide movement (X-axis) through AC servomotor.
»	Steplessly variable rotational movement of cutter spindle (B-axis) / work spindle (C-axis) through AC servomotor.
»	Rotary axes B and C are linked by means of electronic synchronisation through the CNC control system. (no index change gears).
»	Special feature incorporating facility to save the workpiece and cutter in cse of power failure is available on the machine.
»	Retraction of work table in case of power failure to protect cutter and work

Specifications :

Max. dia.of workpiece / Module	mm	200 / 5
Max. stroke length / Shift of stroke	mm	50 / 25
Dia. of work table / Bore	mm	186 / 74.5
Distance between work & cutter axis - Max. / Min.	mm	230 / -55
Rapid traverse rate	mm/min	3000
Rotary feed	mm/str	0.06-5.0
No. of strokes, infinitely variable		360-1800
Radial feed, infinitely variable	mm/min	1-3000
Main motor power		9
CNC Systems & Drives	kW	Siemens / Fanuc
