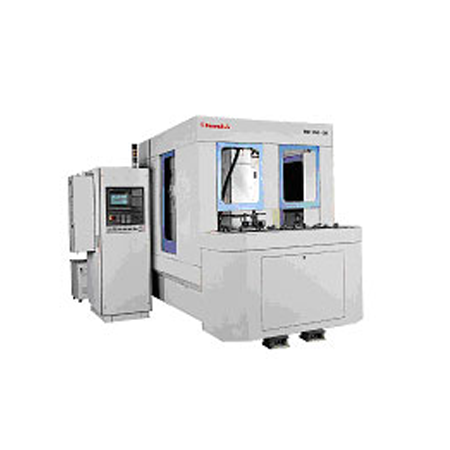

CNC High Speed Gear Shaper WS1 CNC 1A

Salient Features :

»	Better quality output as a result of improved positioning and repeatability of table slide.
»	Higher rapid traverse rate ensuring minimum non-productive cycle time.
»	Fault diagnosis features available.
»	Ballscrew for radial feed.
»	Infinitely variable axial and radial feeds.
»	Better size control due to better positioning accuracy.
»	Tool wear compensation.
»	Multicut facility ensuring easy hobbing of bigger module gears.
»	Auto speed & feed change.

Specifications :

Max. dia.of workpiece / Module	mm	200 / 5
Max. stroke length / Shift of stroke	mm	50 / 25
Dia. of work table / Bore	mm	186 / 74.5
Distance between work & cutter axis - Max. / Min.	mm	230 / 55
Rapid traverse rate	mm/min	3000
Rotary feed	mm/str	0.06-5.0
No. of strokes, infinitely variable		360-1800
Radial feed, infinitely variable	mm/min	1-3000
Main motor power	kW	9
Control system		Siemens / Fanuc
