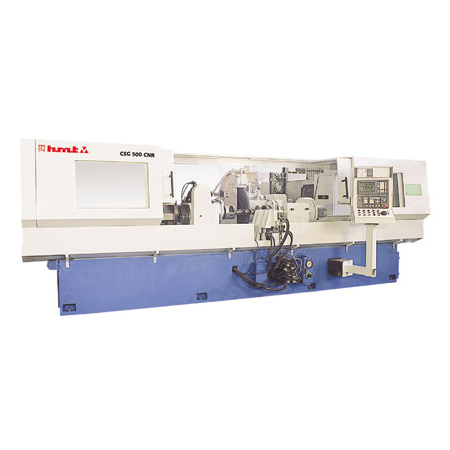

CNC Crankshaft Disc Grinding Machine CSG 500 CNC / CSG 500x800 CNC - Welcome to Hmt International

Salient Features :

»	High precision 5-axes Crankshaft Grinding Machine that offers economic solution for grinding of crank pins and journals of crankshafts in automatic cycle.
»	Inprocess two jaw steady rest and gauge controls the finished size
»	Only loading/unloading and indexing for next pin set-up to be done manually.
»	Directly driven ball screws with AC servomotor for infeed axes.
»	Both ends fixed and pre-stretched precision ball screws driven by AC servomotors for reliability of positions.
»	Profile dressing along with end radius.
»	Infinitely variable speed for work head.
»	Rigid structure.
»	Wheel spindle runs in special high precision tilting pad type hydrodynamic bearing with independent continuous lubrication system.
»	Dual table with aerostatic lifting arrangement enable precise and easy taper setting (CSG 500 CNC).
»	Counter balancing device and chucking device mounted on work spindle. Work drive motor is de-energised for balancing of crankshaft easily.
Special Executions :
»	Machine with higher GWH power.
»	Dynamic wheel balancing apparatus.
»	Electronic automatic wheel balancer.
»	Table/bed/wheel head mounted inprocess gauging.
»	Constant wheel peripheral surface speed.

Specifications :

		CSG 500 CNC	CSG 500x800 CNC
Swing over table	mm	540	540
Swing under steady rest	mm	280	280
Admit between Centres	mm	1800	800
Distance between chucks	mm	1600	600
Max. job weight between centres	kg	250	60
Max. job weight between chucks	mm	120	-
Grinding wheel size (ODxW)	mm	900x50	900x50
Grinding wheel speed	rpm	650,780	650,780
Grinding wheel motor	kW	15	15
Stroke - Table (Z) / Infeed Slide (X)	mm	2000 / 380	800 / 380
Control system		Siemens/Fanuc	Siemens/Fanuc
